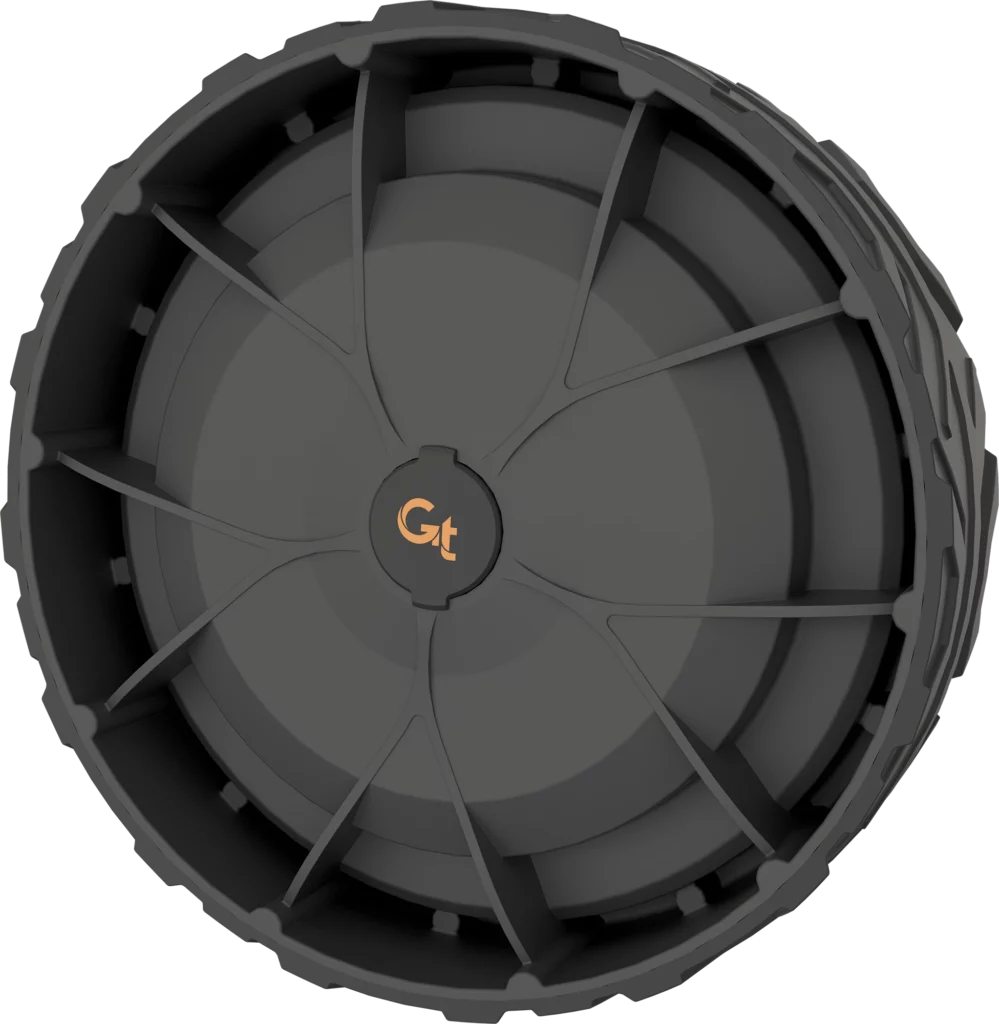

AWD

< Back to the full line:
DiameterØ270 mm
Thickness90 mm
Shaft DiameterØ20 mm
Weight3 kg
No Load Speed200 rpm
Torque @ Max Efficiency5.0 Nm
Max Efficiency72%
Continuous Power50W
Peak Power200W
Motor TypeBrushless DC
Nominal Voltage14.4V
Battery Capacity6.7Ah / 96Wh
Charging PortUSB-C
Max Charging Power5W-60W
Charging Time @ 60W~2 hours
Estimated Autonomy*~ 14 km @ ~ 2.8h
Ingress ProtectionIP66
ConnectivityBluetooth 2 Mb/s @ 100m
DiagLighted Logo LED
Accelerometer / GyroscopeYes
Customer DevelopmentAPI via BLE
* Estimated Autonomy Considering: Battery charged 100%, Cart 10kg, Bag 15kg, Speed 5km/h, 80% flat ground, 15% slope 5°, 4% slope 10°, 1% slope 15°
