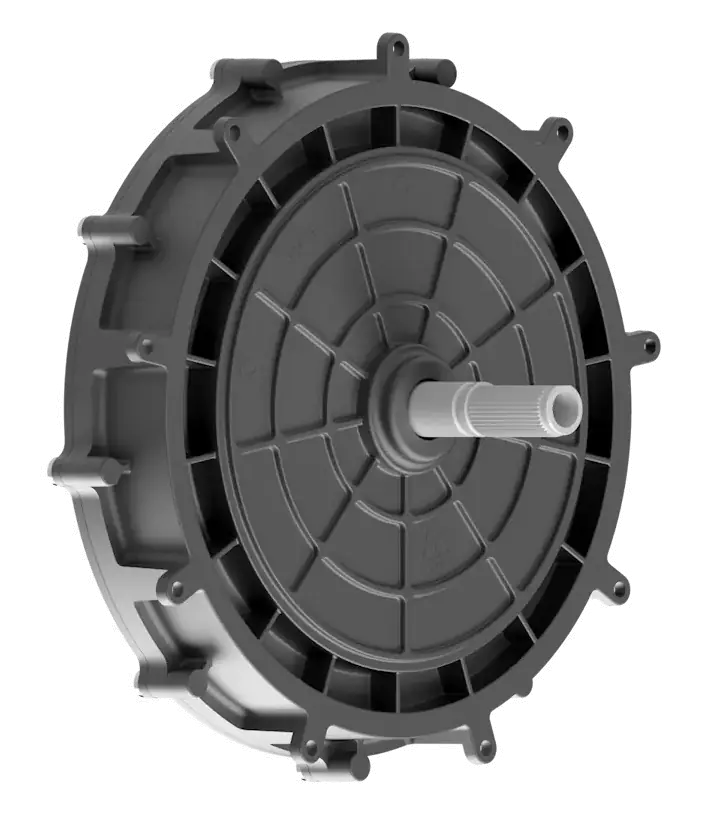

LHD 200
| Minimum Tire Diameter | 8" - 200mm | |
|---|---|---|
| Thickness | 1.8" - 45mm | |
| Load Capacity | one side: 22lbs - 10kg / both sides: 33lbs - 15kg | |
| Continuous Torque | 1.20ft.lbs - 1.6N.m | |
| Peak Torque | 2.75ft.lbs - 3.7N.m | |
| Stall Torque | 7.75ft.lbs - 10.5N.m | |
| Max Speed | 70 rpm | |
| Motor Platform | PM28 | BL32 |
| Max Voltage | 36V | 72V |
| Life Span | 2000h | 5000h |
| Hall Sensors | Option | Yes |
| Connector (upon Customer Specification) | 2 Pins (Option 6 Pins) | 8 Pins |
| Rim Material | Composite | Composite |
