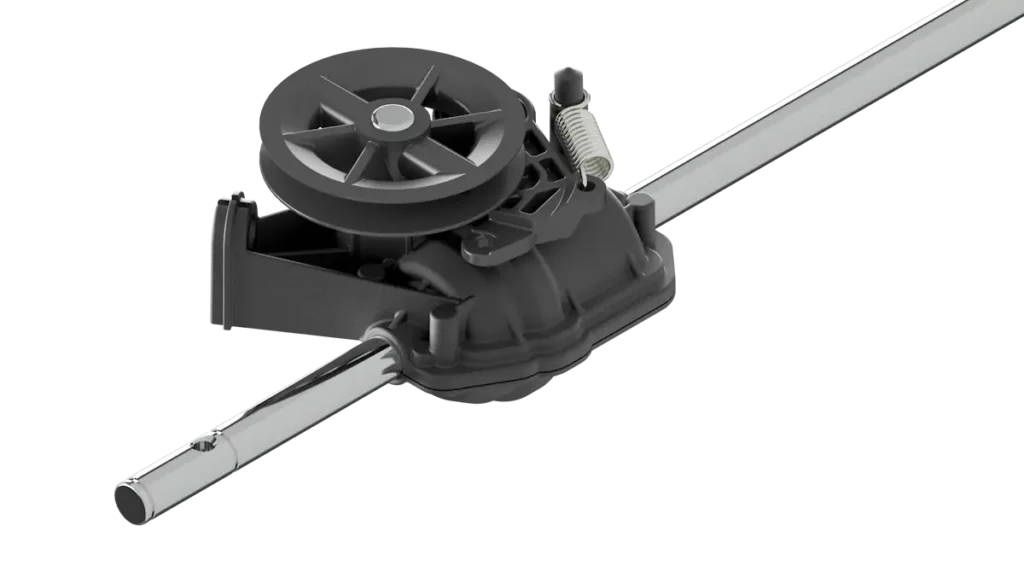

MD 260
The latest addition to our line of economical dog-clutch transmissions for entry level residential lawn mowers. Features lever-controlled clutch engagement for easy integration in the machine.
| Recommended Max Mower Weight* | 35 kg |
|---|---|
| Residential / Commercial Use | Residential |
| Clutch Type | Dog |
| Number of Speeds | 1 |
| Single / Dual Shaft | Single |
| Front / Rear Wheel Drive | Front / Rear |
| Rotation Direction | Opposite or same as wheels |
| Available Ratios | (6:1), (9:1) |
| Housing Material | Composite |
| Dimensions (mm) | 500x100x110 |
| Weight (kg) | 0.80 |
* Weight limitation for reference only. Each application will be reviewed on a case-by-case basis to check conformity to transmission usage limitations.
Key Benefits
- Constant torque
- Economical
- Lubricated for life
