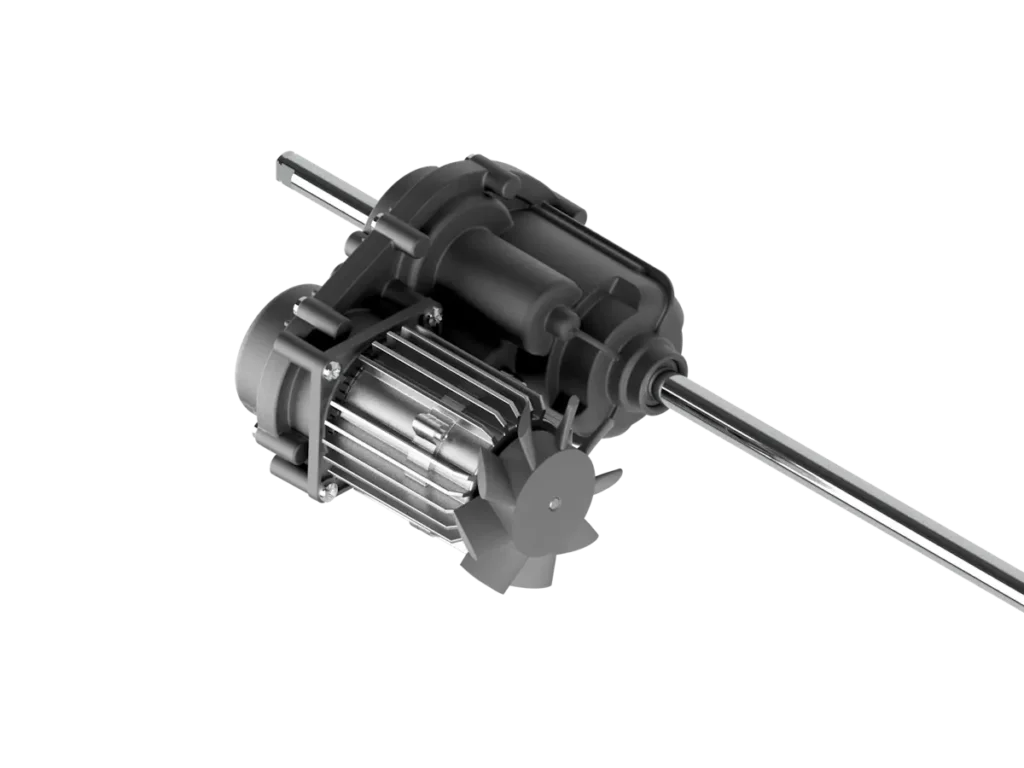

ME 722
A brushless transmission for heavy duty applications. In addition, the brushless technology allows a larger speed range.
| DC Motor Type | BLDC #800 |
|---|---|
| Max Power | 700 W |
| Available Voltage* | 72 V |
| Nominal Torque | 4.5 Nm |
| Max Intermittent Torque (slope) | 8 Nm |
| Max Peak Torque (shocks) | 18 Nm |
| Max Mower Weight | 75 kg |
| Product Lifetime | 500h |
| Clutch | Dual automatic clutch |
| Output Shaft | Dual with differential effect |
| Output Speed | 100 - 600 RPM |
| Available Rotation Direction | Clockwise or counterclockwise |
* Other voltages on request
Key Benefits
- Motor-flanged to the transmission varies ground speed independent of blade speed
- Efficient belt-free design delivers pure power
- Trouble-free reliability
