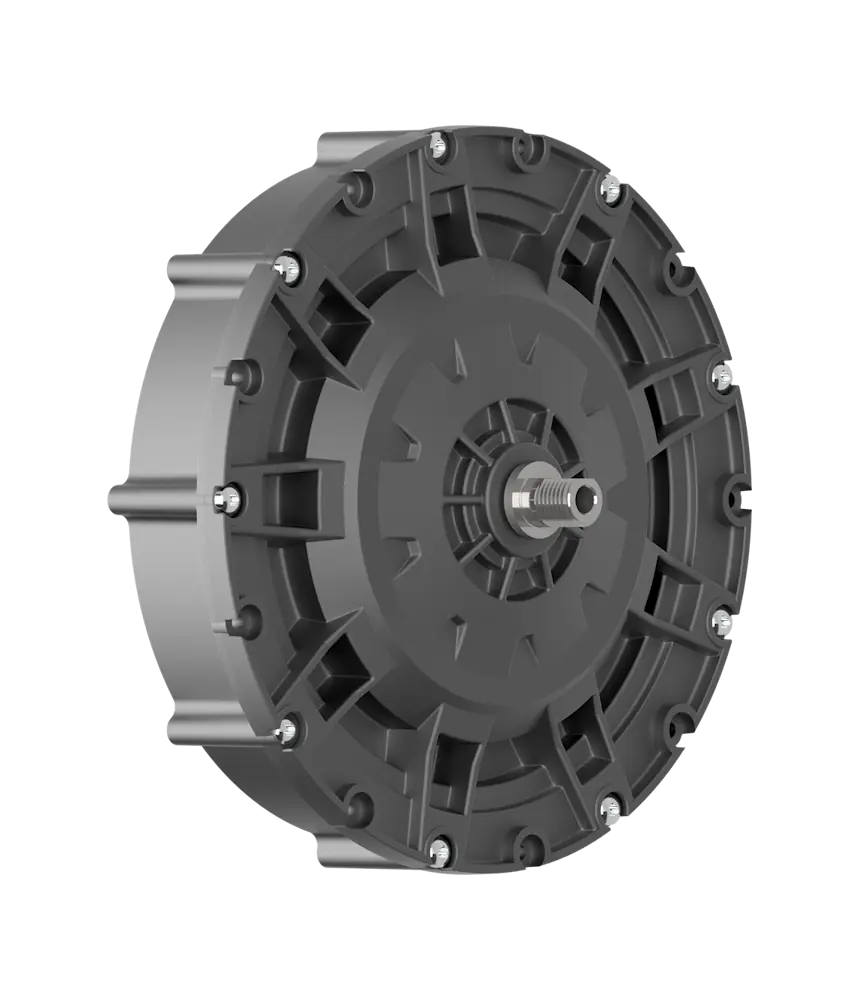

MHD 200
| Minimum Tire Diameter | 8" - 200mm | |
|---|---|---|
| Thickness | 2" - 50mm | |
| Load Capacity | one side: 55lbs - 25kg / both sides: 77lbs - 35kg | |
| Continuous Torque | 3.7ft.lbs - 5N.m | 5.9ft.lbs - 8N.m |
| Peak Torque | 5.9ft.lbs - 8N.m | 9.6ft.lbs - 13N.m |
| Stall Torque | 25.8ft.lbs - 35N.m | 39.8ft.lbs - 54N.m |
| Max Speed | 140 rpm | |
| Motor Platform | PM36 / PM36+ | BL38 |
| Max Voltage | 36V | 72V |
| Life Span | 200h | 500h |
| Hall Sensors | No | Yes |
| Connector (upon Customer Specification) | 2 Pins | 8 Pins |
| Rim Material | Composite | Composite |
