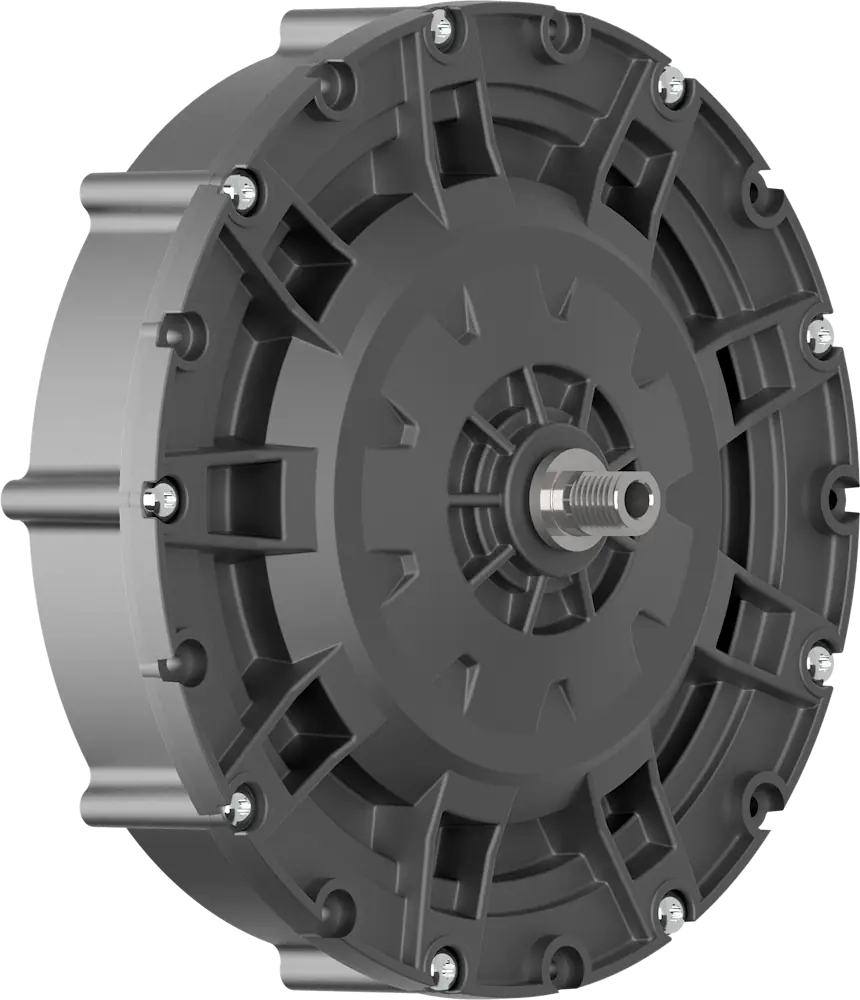

MHD 250
| Minimum Tire Diameter | 10" - 250mm | |
|---|---|---|
| Thickness | 2" - 50mm | |
| Load Capacity | one side: 55lbs - 25kg / both sides: 77lbs - 35kg | |
| Continuous Torque | 4.4ft.lbs - 6N.m | 7.4ft.lbs - 10N.m |
| Peak Torque | 7.4ft.lbs - 10N.m | 11.8ft.lbs - 16N.m |
| Stall Torque | 31.0ft.lbs - 42N.m | 51.6ft.lbs - 70N.m |
| Max Speed | 120 rpm | |
| Motor Platform | PM36 / PM36+ | BL38 |
| Max Voltage | 36V | 72V |
| Life Span | 200h | 500h |
| Hall Sensors | No | Yes |
| Connector (upon Customer Specification) | 2 Pins | 8 Pins |
| Rim Material | Composite | Composite |
